a Remove all parts from the box:
• AC/DC power adaptor
• Revitive ProHealth device
• Remote control
• AAA batteries x 2
See “What’s in the box?” or page 4 of the user manual to help identify the parts
b Locate the remote control and insert the batteries.
c Locate the AC/DC power adaptor.
Plug the small end of the power cord into the socket
on the side of the Revitive.
d Plug the power adaptor into the nearest electrical
socket.
Before you use Revitive for the first time, read the Important Safeguards.
If in doubt, consult your doctor before using the product.
For best results:
• Use Revitive foot-pads for at least 30 to 60 minutes each day, 7 days a week.
If you have varicose veins (CVI), use Revitive foot-pads for 60 minutes per day.
• It is important to use Revitive at a high enough intensity to give you a strong comfortable muscle contraction. Most people achieve a strong muscle contraction over intensity level 40 (intensity range 1-99).
• If you are diagnosed with a long term medical condition such as High Blood Pressure, High Cholesterol, Diabetes, Osteoarthritis, Chronic Venous Insufficiency (CVI), Peripheral Arterial Disease (PAD) or COPD, it can take up to 8 weeks to help reduce symptoms associated with these chronic conditions. Do not use Revitive, using EMS stimulation, for more than 6 sessions of 30 minutes (or the equivalent) per day.
a It is important that you are well hydrated. We recommend that you apply a moisturiser to the soles of the feet to help hydrate the skin and improve the delivery of electrical stimulation.
We also recommend drinking a glass of water before using Revitive
b Get into a comfortable seated position.
For best results sit with your knees at a 90 degree angle (right angle).
c Place Revitive on the floor in front of you.
Revitive is designed to be used while seated.
Never stand on the Revitive unit.
d Place both bare feet on the foot-pads.
Make sure you remove all footwear, including socks/
stockings.

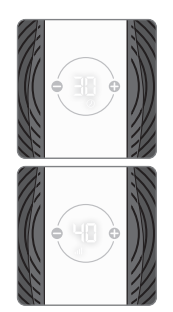

e Press the power button on the device or on the remote control to turn Revitive on.
You will hear a beep and the display will read 30 minutes.
To turn off Revitive at any time during operation, press the power button on the device or on the remote
control.
f Press the (+) Intensity Control one time to start stimulation.
You can use the buttons on the control panel or remote control. Ensure both feet are on the footpads when increasing the intensity.
Press the (+) button to increase the level.
Press the (–) button to decrease the level.
g Ensure you familiarise yourself with the feeling of the electrical muscle stimulation.
Use on a low intensity for 30-60 minutes once per day for a few days.
Set the intensity at a level where you can feel the stimulation in your feet which creates a calf muscle contraction.
It is normal to feel tingling or varying sensations in your feet and calf muscles.
Revitive does not vibrate.
h After a few days of familiarisation, use a higher intensity that provides you with strong but comfortable calf muscle contractions.
Most people experience a strong contraction at intensity level 40 or over.
The IsoRocker® enables Revitive to rock up and down once muscle contractions are nearing the desired level. The rocking is caused by muscle contractions in the leg, and the resulting ankle movement allowed by the IsoRocker is a good indicator that the intensity level is sufficient to provide the therapy. Increasing the intensity above this level will enhance the therapy, but should not be allowed to become
uncomfortable.
You can set the intensity between 1-99.
Please note that the intensity required may vary from day to day.
If you feel pain or discomfort:
• Remove one or both feet from the foot-pads to stop the stimulation
• Lower the intensity of the foot-pads using the (–) Intensity Control on the control panel, or remote control, before replacing your feet on Revitive
i When you have finished setting the intensity, the display reverts to the Time Display.
The Time Display will count down will count down from 30 minutes as Revitive cycles through
its program.
Each time you adjust the intensity, the intensity level shows in the display. Again, when you have finished adjusting the intensity, the display reverts to the Minutes-counter, continuing to count down the
session.
j When Revitive times out, the Time Display reads 00 and you will hear three beeps.
k Revitive switches itself off automatically.
a Ensure Revitive is switched off.
b Wipe down the foot-pads with a soft damp cloth.
Do not clean with chemicals.
Do not immerse Revitive in water.
c Store Revitive in a cool, dry and dust-free location.
Store out of direct sunlight.
