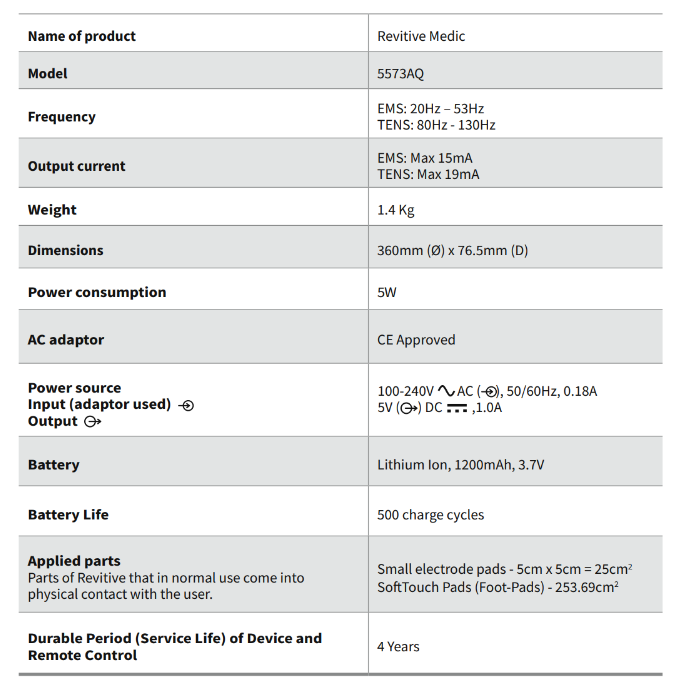

Technical Specifications

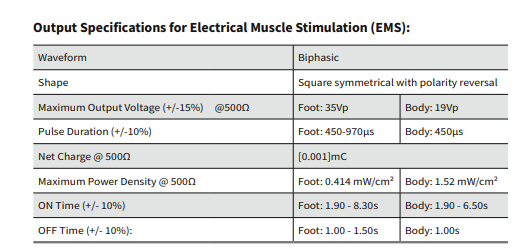

Output Specifications for Electrical Muscle Stimulation (EMS)

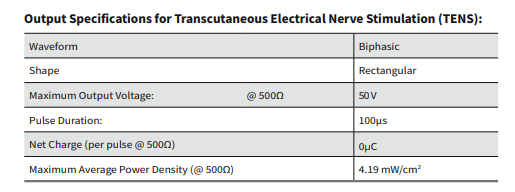

Output Specifications for Transcutaneous Electrical Nerve Stimulation (TENS)
The values of PULSE DURATIONS, PULSE repetition frequencies and amplitudes, including any d.c. component, shall not deviate by more than ± 20 % when measured with a load resistance within the range specified.
If confirmation is required that Revitive works within its Essential Performance after a certain period of time, contact the manufacturer

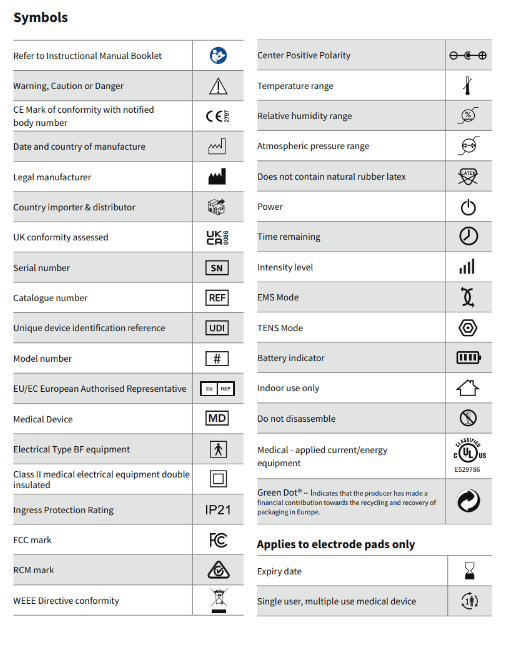

Symbols
